Digital Remote Energy Reading Meter
The project aims to have such a meter which is capable of communicating the units consumed directly to power providers making this a seamless task. It sense AC Voltage and Current and accurately calculate power. Also display cumulative power in Kilowatt hour and unit consumed on LCD. It saves past data in EEPROM so that when power goes off, reading starts from the last recorded value and transmit data wirelessly to power provider company periodically.

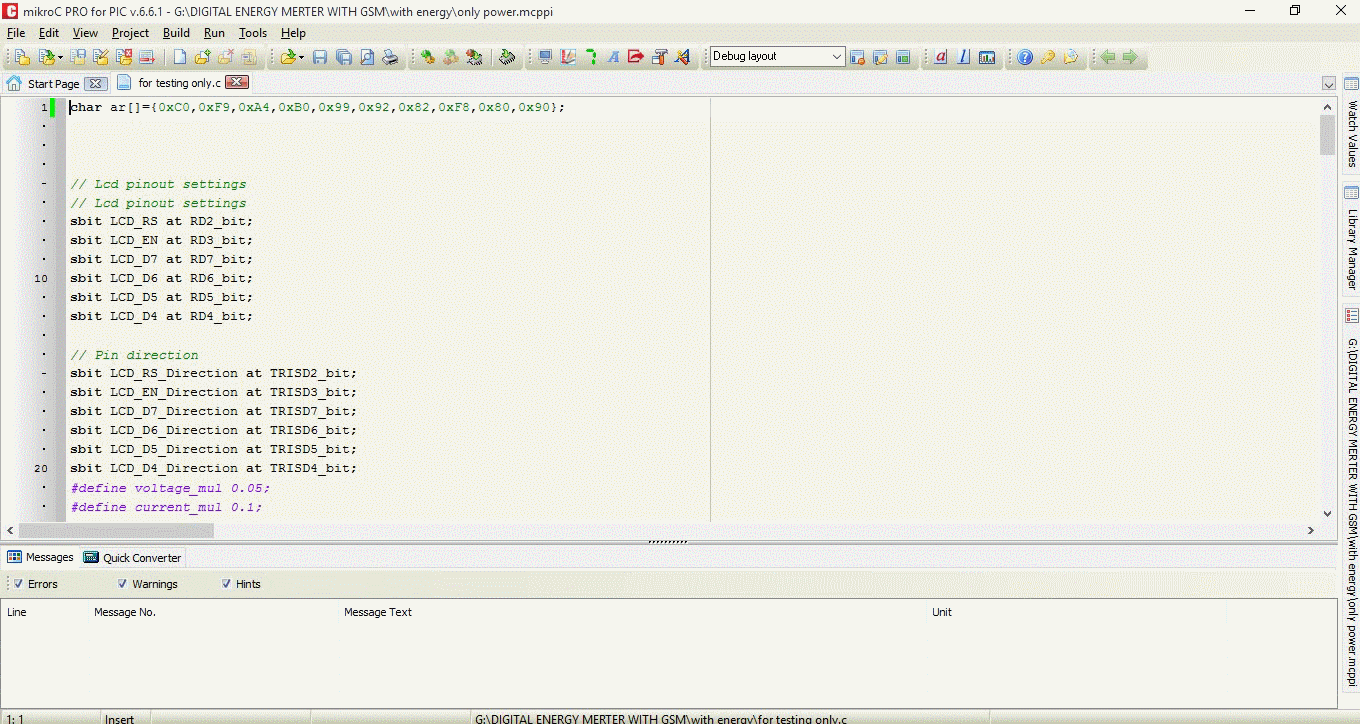

Coding in MikroC
The C code for PIC IC was written,debugged and decoded in MikroC, generating .hex file
Simulation in Proteus
The code and circuit was first tested in proteus software
Zero board testing
Zero Board was connected to GSM Module
PCB layout designing
Designed PCB in Cadence CIS
GSM verfication
The message received at the user side
Preview of the project
Final output at the LCD Display
